Detailed Description

GUI element that provides the way to draw the table.

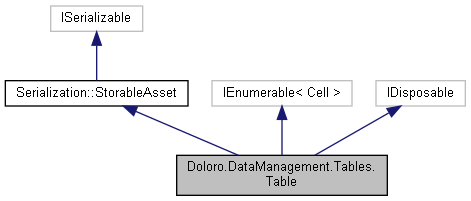

Inheritance diagram for Doloro.DataManagement.Tables.Table:

[legend]

Collaboration diagram for Doloro.DataManagement.Tables.Table:

[legend]

Classes
class	CellsEnumerator
	Enumerates only exists cells into the table structure. More...

Public Member Functions
	Table ()
	Creates empty table.

	Table (SerializationInfo info, StreamingContext context)
	Allows to binary serializer instantiate the object from binary. More...

	Table (int clusterSize)
	Creates empty table with non default cluster size. More...

	Table (int clusterSize, string[,] data)
	Creates table with defined data set and non default cluster size. More...

	Table (string[,] data)
	Creates table with defined data set. More...

string	Get (int row, int column)
	Returns the value from table's cell. More...

Cell	GetInfo (int row, int column)
	Returns the cell's information by the coordinate. More...

void	Set (int row, int column, string value)
	Setting value to the table's cell. More...

void	SetRange (int startRow, int startColumn, string[,] content)
	Setting content range to the table. More...

void	Clear ()
	Clears entire data from the table.

IEnumerator< Cell >	GetEnumerator ()
	Returns enumerator that More...

void	Dispose ()
	Releases allocated memory.

virtual void	GetObjectData (SerializationInfo info, StreamingContext context)
	Converts data object to the binary dump. More...

void	SetDirty ()
	Marks asset as modified and required save operation.

Protected Member Functions
virtual void	Dispose (bool disposing)

virtual void	OnPreSave ()
	Occurs before save process started. More...

virtual void	OnPostSave ()
	Occurs after save process started.

Properties
int	ClusterSize `[get]`
	Size of the single cluster side. More...

string	title `[get, set]`
	Table's title.

int	columns `[get]`
	Current table size by `x` axis.

int	rows `[get]`
	Current table size by `y` axis.

bool	isDirty `[get, set]`
	Asset was modified

bool	isRamLocated `[get]`
	Is the object has no binding to the stored resource.

bool	isObsolete `[get]`
	The asset data is no longer relevant. More...

StorableAsset	asset `[get, set]`
	Reference to relevant asset. More...

string	StoredAssetPath `[get, set]`
	Path to resource binded to the instance. More...

Events
Action	TitleChanged
	Occurs when the title value is changed.

Action	AssetObsoleted
	Occurs when object became obsolete.

Constructor & Destructor Documentation

◆ Table() [1/4]

Doloro.DataManagement.Tables.Table.Table	(	SerializationInfo	info,
		StreamingContext	context
	)

Allows to binary serializer instantiate the object from binary.

Parameters

info
context

◆ Table() [2/4]

Doloro.DataManagement.Tables.Table.Table ( int clusterSize )

Creates empty table with non default cluster size.

Parameters

clusterSize Cluster size definition. Can't be less the 1.

◆ Table() [3/4]

Doloro.DataManagement.Tables.Table.Table	(	int	clusterSize,
		string	data[,]
	)

Creates table with defined data set and non default cluster size.

Parameters

clusterSize	Cluster size definition. Can't be less the 1.
data	Source data that will be set to the table.

◆ Table() [4/4]

Doloro.DataManagement.Tables.Table.Table ( string data[,] )

Creates table with defined data set.

Parameters

data	Source data that will be set to the table.

Member Function Documentation

◆ Get()

string Doloro.DataManagement.Tables.Table.Get	(	int	row,
		int	column
	)

Returns the value from table's cell.

Parameters

row	Target row.
column	Target column.

Returns: Value in the cell along with coords. Null if not exists.

◆ GetEnumerator()

IEnumerator< Cell > Doloro.DataManagement.Tables.Table.GetEnumerator ( )

Returns enumerator that

Returns: Order of cells not guaranteed.

◆ GetInfo()

Cell Doloro.DataManagement.Tables.Table.GetInfo	(	int	row,
		int	column
	)

Returns the cell's information by the coordinate.

Parameters

row	Target row.
column	Target column.

Returns: Value in the cell along with coords. Null if not exists.

◆ GetObjectData()

virtual void Doloro.DataManagement.Serialization.StorableAsset.GetObjectData	(	SerializationInfo	info,
		StreamingContext	context
	)

virtualinherited

Converts data object to the binary dump.

Parameters

info
context

◆ OnPreSave()

virtual void Doloro.DataManagement.Serialization.StorableAsset.OnPreSave ( )

protectedvirtualinherited

Occurs before save process started.

Reimplemented in Doloro.DataManagement.Tables.Solution, and Doloro.DataManagement.Tables.Spreadsheet.

◆ Set()

void Doloro.DataManagement.Tables.Table.Set	(	int	row,
		int	column,
		string	value
	)

Setting value to the table's cell.

Parameters

row	Target row.
column	Target column.
value	Value to set.

◆ SetRange()

void Doloro.DataManagement.Tables.Table.SetRange	(	int	startRow,
		int	startColumn,
		string	content[,]
	)

Setting content range to the table.

Parameters

startRow	Start index of row that will contains the top left corner of the sharing content.
startColumn	Start index of column that will contains the top left corner of the sharing content.
content	Table to set into the source.

Property Documentation

◆ asset

StorableAsset Doloro.DataManagement.Serialization.StorableAsset.asset

getsetprotectedinherited

Reference to relevant asset.

References itself in case if isObsolete is false.

◆ ClusterSize

int Doloro.DataManagement.Tables.Table.ClusterSize

get

Size of the single cluster side.

50 by default. Can't be less then 1;

◆ isObsolete

bool Doloro.DataManagement.Serialization.StorableAsset.isObsolete

getpackageinherited

The asset data is no longer relevant.

Occurs when object was overridden by some data operation (Load etc.) In this case reference

See also: asset

◆ StoredAssetPath

string Doloro.DataManagement.Serialization.StorableAsset.StoredAssetPath

getsetinherited

Path to resource binded to the instance.

Changes during IO.LoadAs(string), IO.SaveAs(StorableAsset, string) or manual set operation.

The documentation for this class was generated from the following files:

D:/Work/GitHub/DGDK22/Assets/Tauri Interactive/Doloro-GDK/Doloro-Data-Management/Runtime/Tables/Table/CellsEnumerator.cs
D:/Work/GitHub/DGDK22/Assets/Tauri Interactive/Doloro-GDK/Doloro-Data-Management/Runtime/Tables/Table/Table.cs
