Detailed Description

Graph that implements cross graphs connections logic.

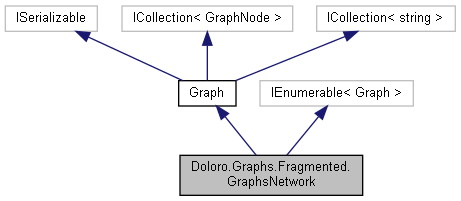

Inheritance diagram for Doloro.Graphs.Fragmented.GraphsNetwork:

[legend]

Collaboration diagram for Doloro.Graphs.Fragmented.GraphsNetwork:

[legend]

Classes
class	CrossGraphVirtualConnection
	Describes virtual link between two graphs. More...

class	RelayGraphNode
	Node of the network that relays to another one real node. More...

class	TransferGraphNode
	Node that has no a real implementation and using to connect several real nodes within virtual graph. More...

Public Member Functions
	GraphsNetwork ()
	Creates new networks of Graphs.

void	Connect (AFragmentGraph graph1, AFragmentGraph graph2, Direction direction=Direction.Default)
	Attach one fragment graph to another. More...

void	Connect (GraphNode graph1node, GraphNode graph2node, Direction direction=Direction.Default)
	Connects two nodes from a different Graphs into the network. More...

void	Disconnect (GraphNode graph1node, GraphNode graph2node)
	Disconnects two nodes withing the network. More...

bool	IsConnected (GraphNode from, GraphNode to)
	Checks is the pair of nodes are connected to each other. More...

virtual bool	Add (Graph graph)
	Adds graph to the network database. More...

void	Add (AFragmentGraph graph)
	Adds fragment graph to the network along with auto declaring of entire exists `Enter` nodes. More...

virtual bool	Remove (Graph graph)
	Removes graph presence from the network along with releasing of entire connections. More...

override void	Add (GraphNode node)
	Adding outside node to the network. More...

override bool	Remove (GraphNode node)
	Removes node connected to the network from the network. More...

override bool	Remove (string nodeSignature)
	Removes node connected to the network from the network. More...

override bool	Contains (string nodeSignature)
	Checks is the outside node included to the network. More...

override bool	Contains (GraphNode node)
	Checks is the outside node included to the network. More...

Path	BuildPath (GraphNode from, Direction escapeDirection, GraphNode to, Direction enteringDirection)
	Attempts to build path from one node to another withing graph network. More...

async Task< Path >	BuildPathAsync (GraphNode from, Direction escapeDirection, GraphNode to, Direction enteringDirection)
	Attempts to build path from one node to another withing graph network asynchronously. More...

delegate void	GraphsRegistryChangeHandler (Graph oldEntry, Graph newEntry)
	Delegate for an agent that handles. More...

virtual Vector3	GetNodePosition (GraphNode node)
	Returns the node's point suggested by the graph logic. More...

virtual void	SetNodePosition (GraphNode node, Vector3 position)
	Defines world position for the certain graph node. More...

virtual GraphNode	Add ()
	Adds new GraphNode to the graph. More...

void	Add (string signature)
	Creates new GraphNode. More...

void	Add (string signature, out GraphNode node)
	Creates new GraphNode. More...

virtual T	Add< T > ()
	Adds new node to the graph. More...

virtual T	Add< T > (string signature)
	Adds new node to the graph. More...

virtual bool	TryGetNode (string signature, out GraphNode node)
	Tries to get graph`s node by the signature. More...

Connection	GetConnection (Guid connectionId)
	Returns descriptor for the Connection by id. More...

virtual void	GetObjectData (SerializationInfo info, StreamingContext context)

override string	ToString ()
	Returns graph info. More...

void	Clear ()
	Clears entire graph from nodes.

void	CopyTo (GraphNode[] array, int arrayIndex)
	Copies graph nodes of the graph to array. More...

void	CopyTo (string[] array, int arrayIndex)
	Copies GraphNode.signature entries in graph to array. More...

Protected Member Functions
virtual bool	Add (Graph graph, out(TransferGraphNode selfNode, HashSet< GraphNode > relatedNodes) metadata)
	Adds graph to the network database. More...

GraphNode	GetRelatedNode (GraphNode source, string title)
	Returns node of the network related to the source node graph. More...

void	OnBinaryDataLoaded ()
	Must be called within `ctor(SerializationInfo info, StreamingContext context)` after binary data deserialization.

Package Functions
	GraphsNetwork (SerializationInfo info, StreamingContext context)
	Restores object from the binary data. More...

void	ReleaseConnection (Guid id)
	Releases connection from internal registry. More...

void	SetConnectionInfo (Connection connection)
	Adds connection info to the registry. More...

Properties
int	GraphsCount `[get]`
	Count of unique graphs included to the network.

Guid	id `[get]`
	Id of the graph into internal runtime registry.

int	Count `[get]`
	Count of nodes into the graph.

int	ConnectionsCount `[get]`
	Count of currently established connections into the graph.

GraphNode	this[string signature] `[get]`

Dictionary< string, GraphNode >	nodes `[get]`
	Graph navigation map. More...

bool	IsReadOnly `[get]`
	Always false.

Events
Action< GraphNode >	NodeAdded
	Occurs when new node added to the graph via the API.

Action< GraphNode >	NodeRemoved
	Occurs when new node removed from the graph via the API.

static GraphsRegistryChangeHandler	GraphObsoleted
	Occurs when registry overridden with a new graph with id that already has been registered. More...

Constructor & Destructor Documentation

◆ GraphsNetwork()

Doloro.Graphs.Fragmented.GraphsNetwork.GraphsNetwork	(	SerializationInfo	info,
		StreamingContext	context
	)

package

Restores object from the binary data.

Parameters

info
context

Member Function Documentation

◆ Add() [1/7]

virtual GraphNode Doloro.Graphs.Graph.Add ( )

virtualinherited

Adds new GraphNode to the graph.

Returns: Node instance.

◆ Add() [2/7]

void Doloro.Graphs.Fragmented.GraphsNetwork.Add ( AFragmentGraph graph )

Adds fragment graph to the network along with auto declaring of entire exists Enter nodes.

Parameters

graph Graph to add.

◆ Add() [3/7]

virtual bool Doloro.Graphs.Fragmented.GraphsNetwork.Add ( Graph graph )

virtual

Adds graph to the network database.

Parameters

graph Graph to add.

Returns: true in case if graph has been registered. false if graph has been registered some time before the call.

◆ Add() [4/7]

virtual bool Doloro.Graphs.Fragmented.GraphsNetwork.Add	(	Graph	graph,
		out(TransferGraphNode selfNode, HashSet< GraphNode > relatedNodes)	metadata
	)

protectedvirtual

Adds graph to the network database.

Parameters

graph	Graph to add.
metadata	Meta data tuple related to the graph.

Returns: true in case if graph has been registered. false if graph has been registered some time before the call.

◆ Add() [5/7]

override void Doloro.Graphs.Fragmented.GraphsNetwork.Add ( GraphNode node )

virtual

Adding outside node to the network.

Parameters

node	Node outside from the network to the network include.

Exceptions

NotSupportedException Node already exist withing the network.

Reimplemented from Doloro.Graphs.Graph.

◆ Add() [6/7]

void Doloro.Graphs.Graph.Add ( string signature )

inherited

Creates new GraphNode.

Parameters

signature Node signature.

◆ Add() [7/7]

void Doloro.Graphs.Graph.Add	(	string	signature,
		out GraphNode	node
	)

inherited

Creates new GraphNode.

Parameters

signature	Node signature.
node	Created instance.

◆ Add< T >() [1/2]

virtual T Doloro.Graphs.Graph.Add< T > ( )

virtualinherited

Adds new node to the graph.

Template Parameters

T	Type of node to add.

Returns: Node instance.

Type Constraints

T	:	GraphNode
T	:	new()

◆ Add< T >() [2/2]

virtual T Doloro.Graphs.Graph.Add< T > ( string signature )

virtualinherited

Adds new node to the graph.

Template Parameters

T	Type of node to add.

Parameters

signature Node signature.

Returns: Node instance.

Type Constraints

T

:

GraphNode

◆ BuildPath()

Path Doloro.Graphs.Fragmented.GraphsNetwork.BuildPath	(	GraphNode	from,
		Direction	escapeDirection,
		GraphNode	to,
		Direction	enteringDirection
	)

Attempts to build path from one node to another withing graph network.

Parameters

from	Origin node.
escapeDirection	Direction preferring to leave the origin graph to entering the network space.
to	Destination node.
enteringDirection	Direction preferring to enter destination graph.

Returns: Path from one point to another.

◆ BuildPathAsync()

async Task< Path > Doloro.Graphs.Fragmented.GraphsNetwork.BuildPathAsync	(	GraphNode	from,
		Direction	escapeDirection,
		GraphNode	to,
		Direction	enteringDirection
	)

Attempts to build path from one node to another withing graph network asynchronously.

Parameters

from	Origin node.
escapeDirection	Direction preferring to leave the origin graph to entering the network space.
to	Destination node.
enteringDirection	Direction preferring to enter destination graph.

Returns: Path from one point to another.

◆ Connect() [1/2]

void Doloro.Graphs.Fragmented.GraphsNetwork.Connect	(	AFragmentGraph	graph1,
		AFragmentGraph	graph2,
		Direction	direction = `Direction.Default`
	)

Attach one fragment graph to another.

Parameters

graph1	First graph.
graph2	Second graph.
direction	Direction from the first graph to a second one in world space.

◆ Connect() [2/2]

void Doloro.Graphs.Fragmented.GraphsNetwork.Connect	(	GraphNode	graph1node,
		GraphNode	graph2node,
		Direction	direction = `Direction.Default`
	)

Connects two nodes from a different Graphs into the network.

Parameters

graph1node	Node from a first graph.
graph2node	Node from a second graph.
direction	Connection direction considered with graph position in 2D space to each other.

◆ Contains() [1/2]

override bool Doloro.Graphs.Fragmented.GraphsNetwork.Contains ( GraphNode node )

virtual

Checks is the outside node included to the network.

Parameters

node	Node from outside of the network's raw graph.

Returns: true in case if the node has been included to the network.

Reimplemented from Doloro.Graphs.Graph.

◆ Contains() [2/2]

override bool Doloro.Graphs.Fragmented.GraphsNetwork.Contains ( string nodeSignature )

virtual

Checks is the outside node included to the network.

Parameters

nodeSignature GraphNode.signature of the node from outside of the network's raw graph.

Returns: true in case if the node has been included to the network.

Reimplemented from Doloro.Graphs.Graph.

◆ CopyTo() [1/2]

void Doloro.Graphs.Graph.CopyTo	(	GraphNode[]	array,
		int	arrayIndex
	)

inherited

Copies graph nodes of the graph to array.

Parameters

array	Destination array.
arrayIndex	Start index at the destination array.

◆ CopyTo() [2/2]

void Doloro.Graphs.Graph.CopyTo	(	string[]	array,
		int	arrayIndex
	)

inherited

Copies GraphNode.signature entries in graph to array.

Parameters

array	Destination array.
arrayIndex	Insertion index at destination array.

◆ Disconnect()

void Doloro.Graphs.Fragmented.GraphsNetwork.Disconnect	(	GraphNode	graph1node,
		GraphNode	graph2node
	)

Disconnects two nodes withing the network.

Parameters

graph1node	First node of connection.
graph2node	Second node of connection.

◆ GetConnection()

Connection Doloro.Graphs.Graph.GetConnection ( Guid connectionId )

inherited

Returns descriptor for the Connection by id.

Parameters

connectionId Id of the connection.

Returns: Instance of connection.

◆ GetNodePosition()

virtual Vector3 Doloro.Graphs.Graph.GetNodePosition ( GraphNode node )

virtualinherited

Returns the node's point suggested by the graph logic.

Parameters

node	Target node.

Returns: World position of the node point.

◆ GetRelatedNode()

GraphNode Doloro.Graphs.Fragmented.GraphsNetwork.GetRelatedNode	(	GraphNode	source,
		string	title
	)

protected

Returns node of the network related to the source node graph.

Parameters

source	Bode of a graph included to the network.
title	Title of node to system messages.

Returns: Node instance.

Exceptions

ArgumentException Node is not a part of the network.

◆ GraphsRegistryChangeHandler()

delegate void Doloro.Graphs.Graph.GraphsRegistryChangeHandler	(	Graph	oldEntry,
		Graph	newEntry
	)

inherited

Delegate for an agent that handles.

Parameters

oldEntry	Entry that excluded from the registry.
newEntry	Graph that applied to the registry instead of an old one.

◆ IsConnected()

bool Doloro.Graphs.Fragmented.GraphsNetwork.IsConnected	(	GraphNode	from,
		GraphNode	to
	)

Checks is the pair of nodes are connected to each other.

Parameters

from
to

Returns

◆ ReleaseConnection()

void Doloro.Graphs.Graph.ReleaseConnection ( Guid id )

packageinherited

Releases connection from internal registry.

Parameters

id	Connection.id to release.

◆ Remove() [1/3]

virtual bool Doloro.Graphs.Fragmented.GraphsNetwork.Remove ( Graph graph )

virtual

Removes graph presence from the network along with releasing of entire connections.

Parameters

graph Graph to release.

Returns: true in case if graph has been released. false in case if graph has been found.

◆ Remove() [2/3]

override bool Doloro.Graphs.Fragmented.GraphsNetwork.Remove ( GraphNode node )

virtual

Removes node connected to the network from the network.

Parameters

node	Node to exclude.

Returns: is the node has been excluded from the network.

Not allows to remove node declared by the network itself. Allows access only for user-site nodes.

Reimplemented from Doloro.Graphs.Graph.

◆ Remove() [3/3]

override bool Doloro.Graphs.Fragmented.GraphsNetwork.Remove ( string nodeSignature )

virtual

Removes node connected to the network from the network.

Parameters

nodeSignature GraphNode.signature to exclude.

Returns: is the node has been excluded from the network.

Not allows to remove node declared by the network itself. Allows access only for user-site nodes.

Reimplemented from Doloro.Graphs.Graph.

◆ SetConnectionInfo()

void Doloro.Graphs.Graph.SetConnectionInfo ( Connection connection )

packageinherited

Adds connection info to the registry.

Parameters

connection Connection to add.

◆ SetNodePosition()

virtual void Doloro.Graphs.Graph.SetNodePosition	(	GraphNode	node,
		Vector3	position
	)

virtualinherited

Defines world position for the certain graph node.

Parameters

node	Node to position declare.
position	World position related to the node.

◆ ToString()

override string Doloro.Graphs.Graph.ToString ( )

inherited

Returns graph info.

Returns: String representation of graph instance.

◆ TryGetNode()

virtual bool Doloro.Graphs.Graph.TryGetNode	(	string	signature,
		out GraphNode	node
	)

virtualinherited

Tries to get graph`s node by the signature.

Parameters

signature	GraphNode.signature as access key.
node	Node instance if found.

Returns: Search result.

Property Documentation

◆ nodes

Dictionary<string, GraphNode> Doloro.Graphs.Graph.nodes

getpackageinherited

Graph navigation map.

string - GraphNode.signature <see cref="GraphNode"/> - node instance.

Event Documentation

◆ GraphObsoleted

GraphsRegistryChangeHandler Doloro.Graphs.Graph.GraphObsoleted

staticinherited

Occurs when registry overridden with a new graph with id that already has been registered.

Could occur when you loading the graph that has been loaded up to the moment from the binary data.

The documentation for this class was generated from the following files:

D:/Work/GitHub/DGDK22/Assets/Tauri Interactive/Doloro-GDK/Doloro-Graphs/Runtime/Graphs/FragmentGraph/GraphsNetwork.CrossGraphVirtualConnection.cs
D:/Work/GitHub/DGDK22/Assets/Tauri Interactive/Doloro-GDK/Doloro-Graphs/Runtime/Graphs/FragmentGraph/GraphsNetwork.cs
D:/Work/GitHub/DGDK22/Assets/Tauri Interactive/Doloro-GDK/Doloro-Graphs/Runtime/Graphs/FragmentGraph/GraphsNetwork_Pathfinding.cs

Detailed Description

Classes

Public Member Functions

Protected Member Functions

Package Functions

Properties

Events

Constructor & Destructor Documentation

◆ GraphsNetwork()

Member Function Documentation

◆ Add() [1/7]

◆ Add() [2/7]

◆ Add() [3/7]

◆ Add() [4/7]

◆ Add() [5/7]

◆ Add() [6/7]

◆ Add() [7/7]

◆ Add< T >() [1/2]

◆ Add< T >() [2/2]

◆ BuildPath()

◆ BuildPathAsync()

◆ Connect() [1/2]

◆ Connect() [2/2]

◆ Contains() [1/2]

◆ Contains() [2/2]

◆ CopyTo() [1/2]

◆ CopyTo() [2/2]

◆ Disconnect()

◆ GetConnection()

◆ GetNodePosition()

◆ GetRelatedNode()

◆ GraphsRegistryChangeHandler()

◆ IsConnected()

◆ ReleaseConnection()

◆ Remove() [1/3]

◆ Remove() [2/3]

◆ Remove() [3/3]

◆ SetConnectionInfo()

◆ SetNodePosition()

◆ ToString()

◆ TryGetNode()

Property Documentation

◆ nodes

Event Documentation

◆ GraphObsoleted
